Sliding Gate Motors
DC24V brushless motors — powerful, safe, and solar-ready. Supports up to 1500KG load.
GK800DC
Compact sliding gate motor for gates up to 800KG. Built-in battery backup, solar-compatible.
- Max Load800 KG
- Power370W
- Speed2 m/s
- VoltageDC 24V
- ProtectionIP44

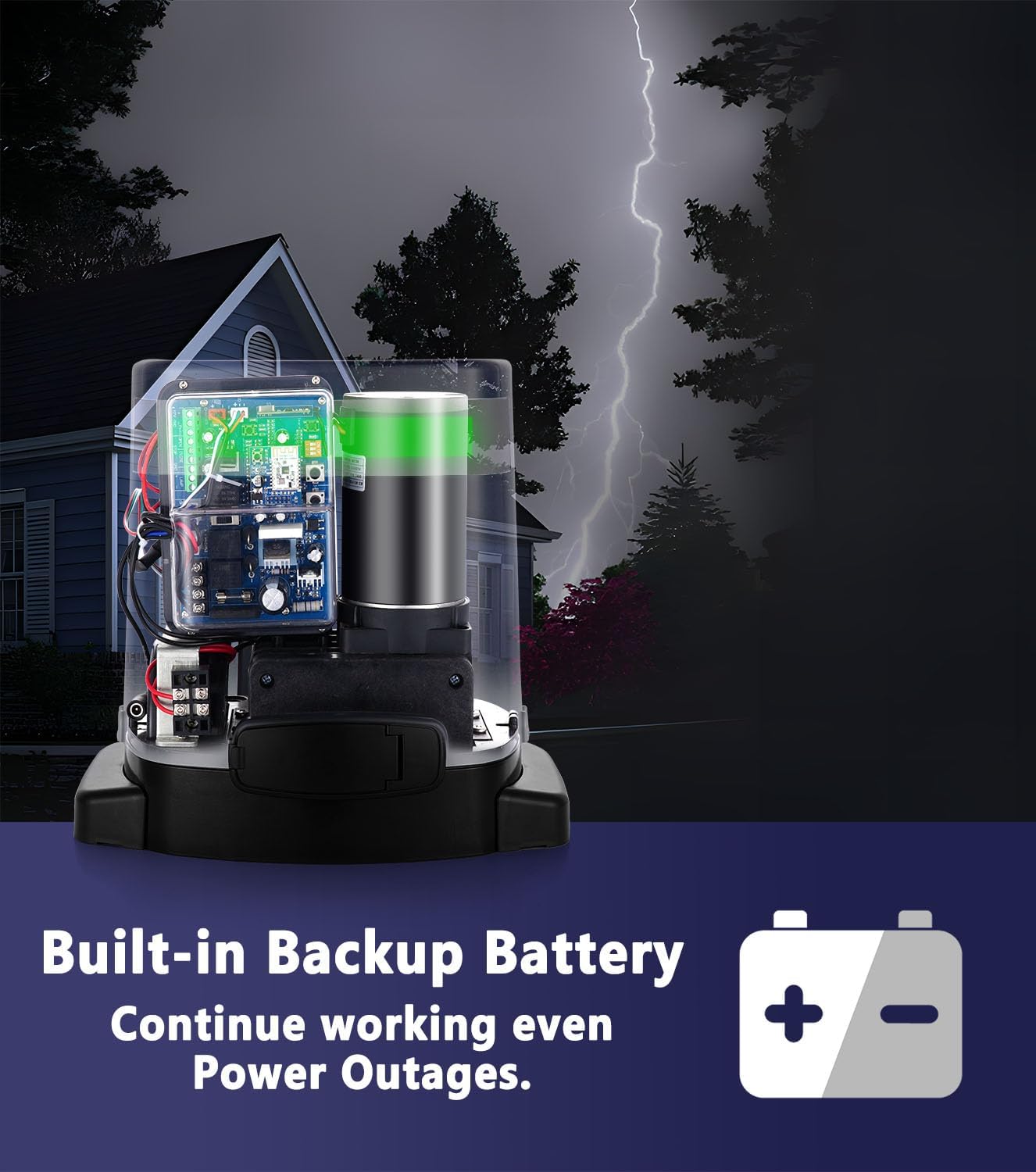

GK1200DC
Heavy-duty sliding gate motor for gates up to 1200KG. Ideal for commercial and industrial applications.
- Max Load1200 KG
- Power550W
- Speed2 m/s
- VoltageDC 24V
- ProtectionIP44
GK1500DC
Industrial-grade sliding gate motor for gates up to 1500KG. Maximum reliability for demanding environments.
- Max Load1500 KG
- PowerUp to 800W
- Speed2 m/s
- VoltageDC 24V
- ProtectionIP44
Technical Specifications
| Model | Power (W) | Max Load (KG) | Output Torque | Speed (m/s) | Temp Range | G.W (KG) | Packing Size (mm) | Protection |
|---|---|---|---|---|---|---|---|---|
| GK800DC | 370 | 800 (1763 lb) | 18 Nm | 2 | -45°C ~ +60°C | 12.2 | 320×260×390 | IP44 |
| GK1200DC | 550 | 1200 (2645 lb) | 18 Nm | 2 | -45°C ~ +60°C | 12.8 | 320×260×390 | IP44 |
| GK1500DC | Up to 800 | 1500 | — | 2 | -45°C ~ +60°C | — | — | IP44 |
Key Features
Garage Door Openers
Two series: AB Series — belt drive with LED lighting, and AJ Series — chain drive with WiFi + voice navigation.
AB Series — Belt Drive · LED Lighting · Soft Start/Stop
AB80
Belt drive garage door opener. For residential garage doors up to 800KG.
- Power120W
- Max Door Load800 N·m Torque
- Lighting25W LED
- Voltage24V DC
- G.W5.6 KG

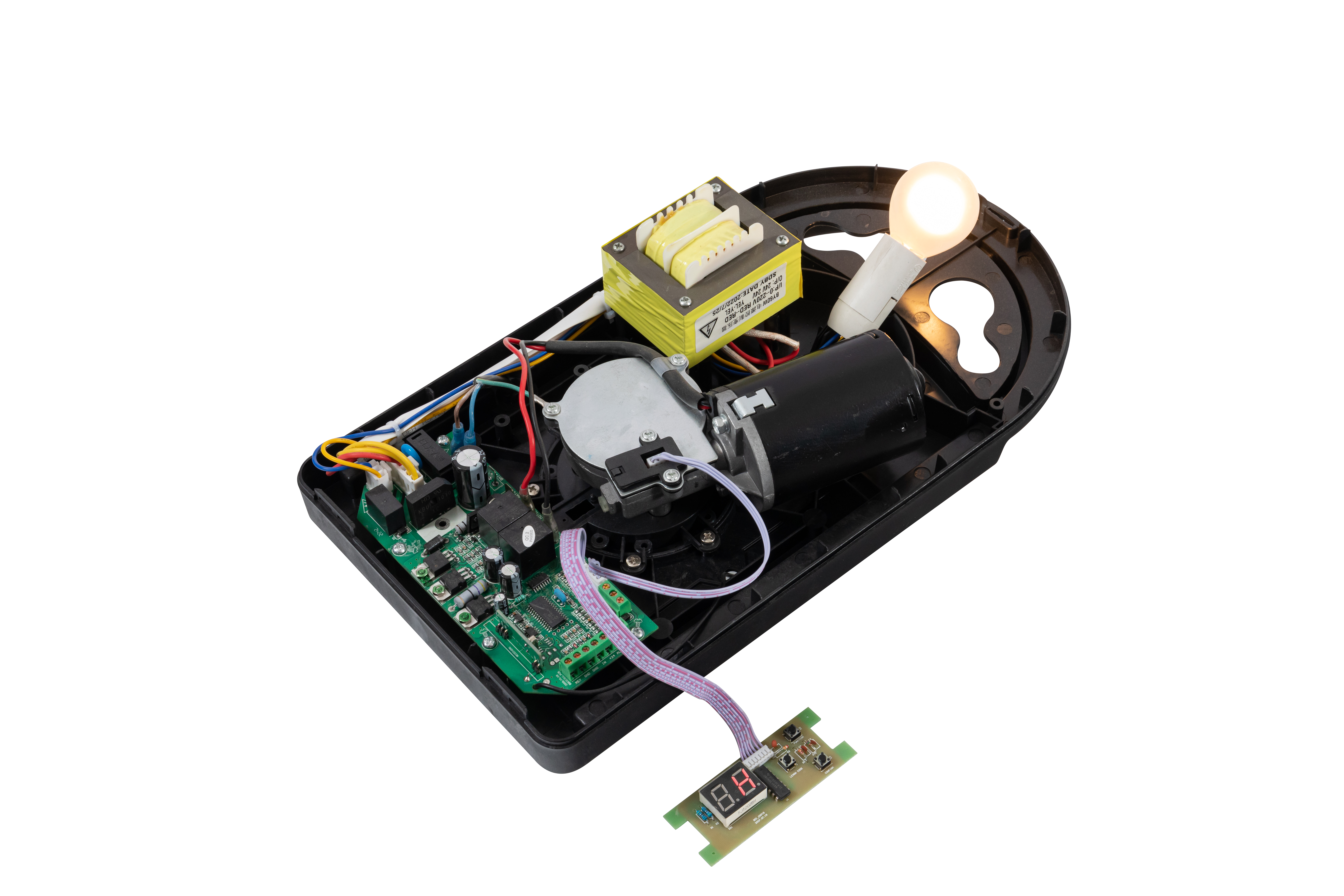

AB100
Upgraded belt drive opener. For heavier residential garage doors.
- Power150W
- Max Door Load1000 N·m Torque
- Lighting25W LED
- Voltage24V DC
- G.W5.9 KG
AJ Series — Chain Drive · Voice Navigation · WiFi/TuYa App · 12V Backup Battery

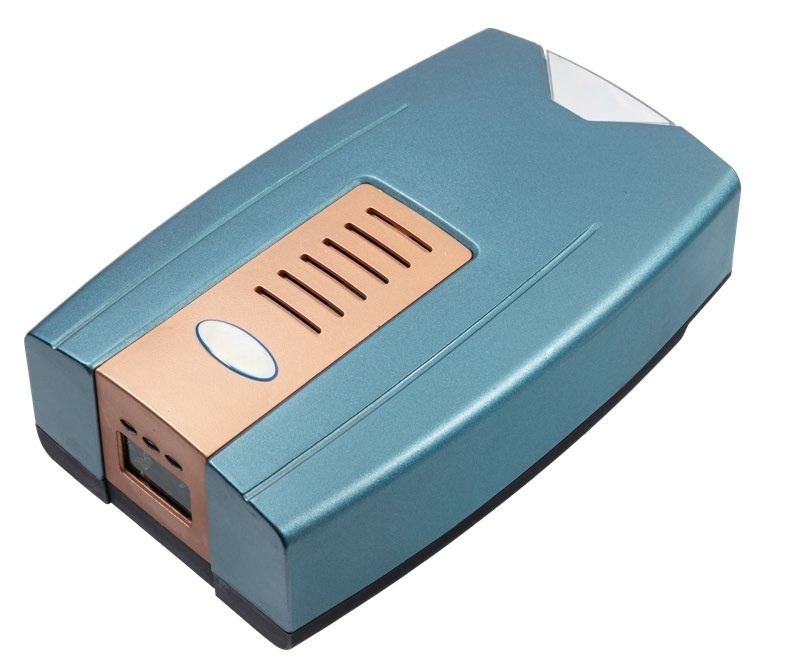

AJ30
Chain drive opener for residential garage doors. 800 N·m torque output.
- Power150W
- Max Door Load800 N·m Torque
- Lighting0.5W LED
- Voltage24V DC
- G.W6.1 KG

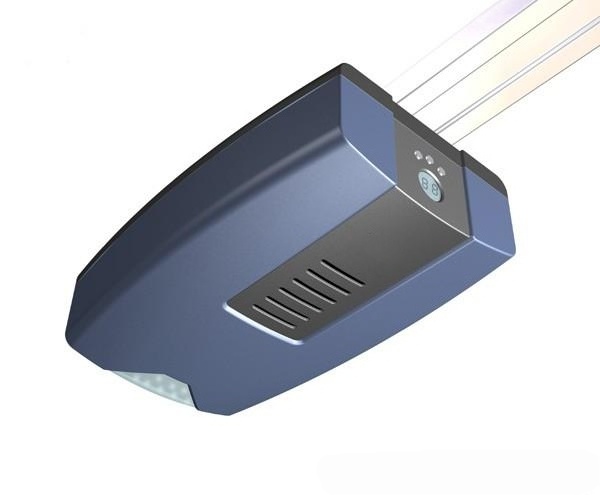

AJ50
Chain drive with voice navigation. For medium residential garage doors.
- Power180W
- Max Door Load1000 N·m Torque
- Lighting0.5W LED
- Voltage24V DC
- G.W6.5 KG

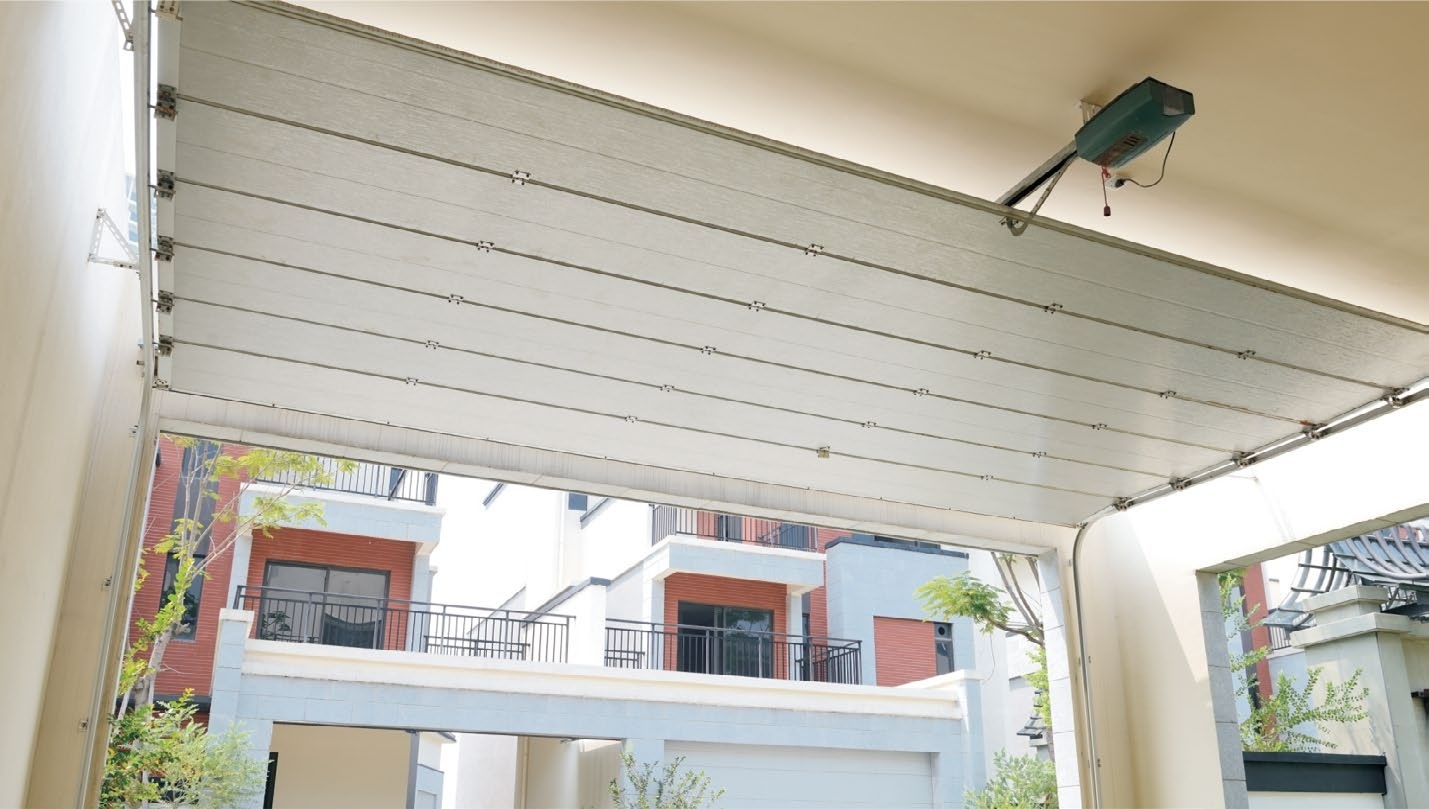

AJ100
Heavy-duty chain drive. For larger/heavier garage doors. WiFi + 24V backup battery.
- Power300W
- Max Door Load1200 N·m Torque
- Lighting0.5W LED
- Voltage24V DC
- G.W7.8 KG
AB & AJ Series Specifications
| Series | Model | Power (W) | Lighting (W) | Voltage | Max Torque (N·m) | Output RPM | Temp Range | G.W (KG) | Packing (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AB (Belt) | AB80 | 120 | 25 | 24V DC | 800 | 170 | -35 ~ +70°C | 5.6 | 487×242×178 |
| AB (Belt) | AB100 | 150 | 25 | 24V DC | 1000 | 170 | -35 ~ +70°C | 5.9 | 487×242×179 |
| AJ (Chain) | AJ30 | 150 | 0.5 | 24V DC | 800 | 140 | -35 ~ +70°C | 6.1 | 505×280×180 |
| AJ (Chain) | AJ50 | 180 | 0.5 | 24V DC | 1000 | 140 | -35 ~ +70°C | 6.5 | 505×280×180 |
| AJ (Chain) | AJ100 | 300 | 0.5 | 24V DC | 1200 | 140 | -35 ~ +70°C | 7.8 | 505×280×180 |
Rail Options (All Series)
| Rail Length (mm) | Max Door Height (mm) | Gross Weight (KG) | Packing Size (mm) |
|---|---|---|---|
| 3000 | 2200 | 7.0 | 3050×72×34 |
| 3300 | 2500 | 7.7 | 3350×72×34 |
| 3600 | 2800 | 8.4 | 3650×72×34 |
| 3900 | 3100 | 9.1 | 3950×72×34 |
| 4200 | 3400 | 9.8 | 4250×72×34 |
